Product Center
Your Location : Home / Product Center >> Endless Rubber Conveyor Belt >> Endless Rubber Conveyor Belt
| Name: | Endless Rubber Conveyor Belt |
|---|---|
| Place of Origin: | Shandong ,China |
| Brand Name: | Kaiyu Rubber |
| Edge: | Mould / Cut |
| Ply Number: | 1-20p |
| Width: | 200-2400mm |
| Mpa: | 8-25Mpa |
| Abrasion: | 70-350mm3 |
| temperature: | -40℃ -300℃ |
Product Description

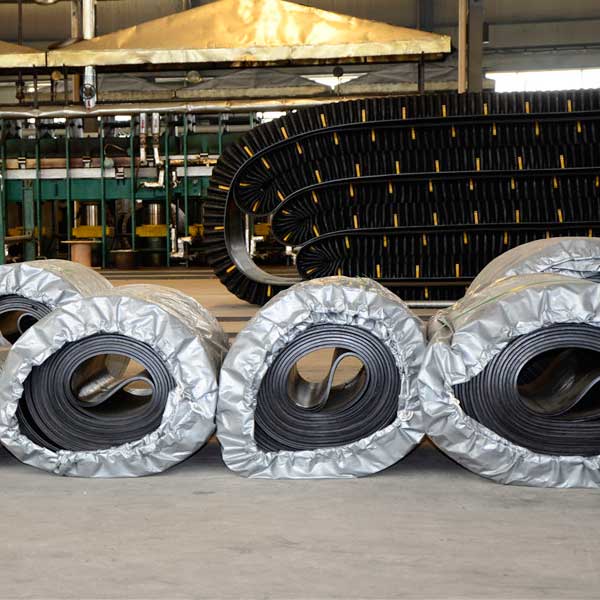

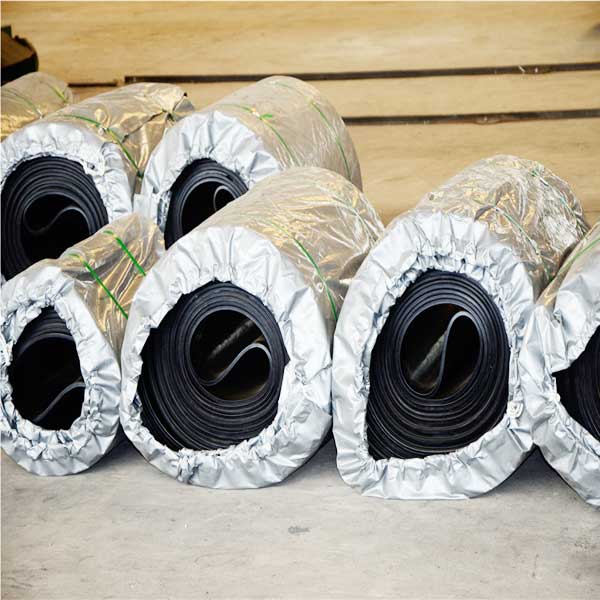

Endless Conveyor Belt
Details of endless conveyor belt :
Conveyor belt rubber, Belt conveyer, belt conveyer, conveyor belt, conveying belt, conveyor belting, conveyor rubber belt, rubber conveying belt, conveying rubber belt, rubber belt, conveyor, belt, industrial conveyor belt, transportion belt, conveyor belt China, coal conveyor belt, cement conveyor belt, handling equipment, coal mining conveyor belt, mining belt, mining conveyor belt, chip conveyor belt, coal belt conveyor, coal belt, coal belting, concrete conveyor belt, concrete belt, concrete belting, heavy duty belt
Standards Nylon conveyor belts with nylon canvas have the following merits:
1) high abrasion resistance, high tensile strength and good fatigue resistance;
2) Conveyor belt with nylon canvas inside has the characteristics of thin belt body, high tensile strength, good shock resistance, good trough ability, high adhesion between plies, splendid flexibility and long working life.
Specification and technical index
We could offer belt with cover grade in accordance to International standard such as DIN 22102, RMA, AS 1332, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, etc.
| Standards | Cover Rubber | Adhesion | |||||
Tensile Strength |
Elongation at break |
Abrasion | Cover to Ply |
Cover to Ply |
Ply to Ply |
||
| DIN 22102 | Mpa | % | mm3 | N/mm | N/mm | N/mm | |
| <=1.5mm | >1.5mm | ||||||
| DIN 22102-Z | 15 | 350 | 250 | 3.5 | 4.5 | 5 | |
| DIN 22102-W | 18 | 400 | 90 | 3.5 | 4.5 | 5 | |
| DIN 22102-Y | 20 | 400 | 150 | 3.5 | 4.5 | 5 | |
| DIN 22102-X | 25 | 450 | 120 | 3.5 | 4.5 | 5 | |
| Standards | Cover Rubber | Adhesion | ||||
Tensile StrengTD |
Elongation at break |
Abrasion | Cover to Ply |
Cover to Ply |
Ply to Ply |
|
| AS 1332 | Mpa | % | mm3 | N/mm | N/mm | N/mm |
| (≤1.9mm) | (>1.9mm) | |||||
| AS 1332-N17 | 17 | 400 | 200 | 4 | 4.8 | 6 |
| AS 1332-M24 | 24 | 450 | 125 | 4 | 4.8 | 6 |
| Standards | Cover Rubber | Adhesion | ||||
Tensile StrengTD |
Elongation at break |
Abrasion | Cover to Ply |
Cover to Ply |
Ply to Ply |
|
| RMA | Mpa | % | mm3 | N/mm | N/mm | N/mm |
| (≤1.6mm) | (>1.6mm) | |||||
| RMA-I | 17 | 400 | 3 | 4.4 | 4 | |
| RMA-II | 14 | 400 | 3 | 4.4 | 4 | |
