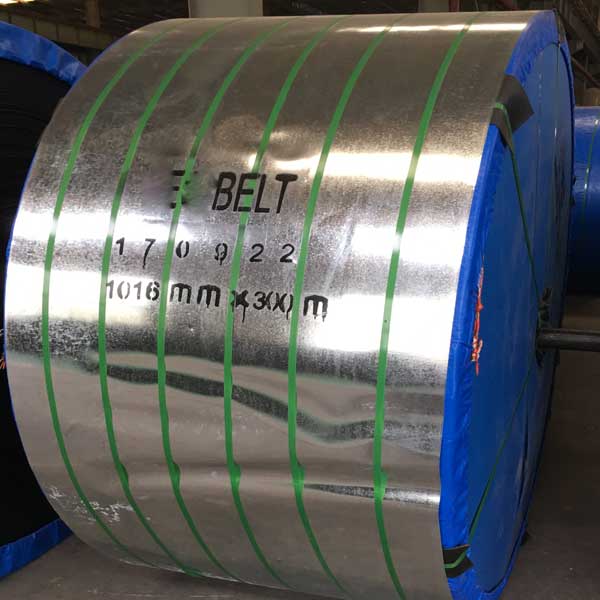

Name: | Cold Resistant Rubber Conveyor Belt |
---|---|
Place of Origin: | Shandong ,China |
Brand Name: | Kaiyu Rubber |
Edge: | Mould / Cut |
Ply Number: | 1-20p |
Width: | 200-2400mm |
Mpa: | 8-25Mpa |
Abrasion: | 70-350mm3 |
temperature: | -40℃ -300℃ |
Product Description
Cold Resistant belting solutions delivered are made available in superior cotton canvas, EP canvas (as carcass) as well as in nylon canvas finish.
Further, these feature use of cover rubbers which are a blend of NR and BR having in them -
Cold Resistant Belts
High elasticity
Shock resistance
Cold resistance
All other desired properties to efficiently perform @ -40oC
Usage:
Some of the possible end usage areas include :

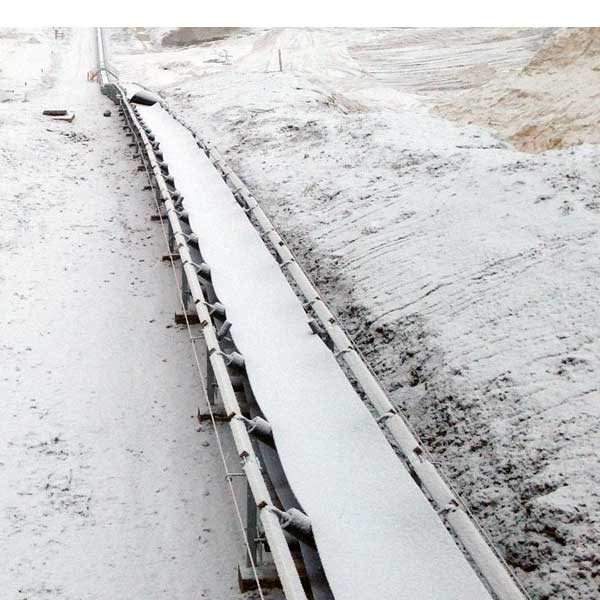

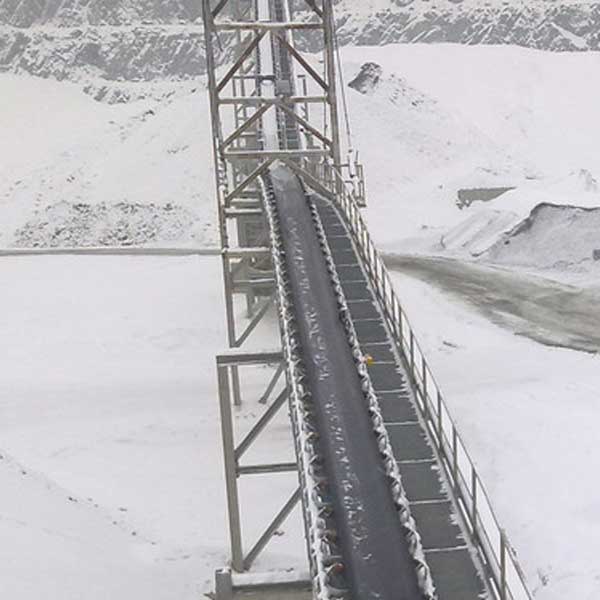

For conveying materials outdoors in freezing area
For conveying materials to cold storage
Features :
Some of the standard features of these belts include :
Cored structure divided into ordinary & reinforced combined CIS锟絙utadiene synthetic rubber to provide superior functionality
Use if natural rubber as covering rubber that comes with highest elasticity as well as cold锟絩esistance performance
Belts designed to efficiently perform in sub zero temperatures of -40C
Advantages :
Some of the possible advantages include :
Suitability for conveying various types of material in cold areas or cool warehouse environment
Can be available in different belt carcass including Cotton canvas, Nylon canvas or Polyester canvas
The cover rubber can comprise combination of 3-polybutadiene Rubber(BR) and Natural Rubber(NR)
Belts characterized by high elasticity
Belts impact-proof as well as cold-proof
Can work under temperatures of -40oC
Differentiation :
Differentiation on basis of Cover Rubber :
These are available in following types:
Crack-resistant
Abrasion-resistant
Common types
Differentiation on basis of Cold-proof performance:
It can be delivered in finishes including:
S1 (-45oC ~ 50oC)
S2 (-60oC ~ 50oC)
Cover Physical Property Indexes | ||||
Item | Index | |||
H | D | L | ||
Tensile Strength / Mpa ≤ | 24 | 18 | 15 | |
Breaking Elongation / % ≤ | 450 | 400 | 350 | |
Ageing experiment (70oC, 7d) | Change rate of tensile strength / % | ±25 | ±25 | ±25 |
Change rate of breaking elongation / % | ±25 | ±25 | ±25 | |
Abrasion / mm3 ≥ | 120 | 100 | 250 | |
Cold resistant coefficient at elongate ≤ | C1(-45oC) | 0.3 | ||
C2(-50oC) | 0.2 | |||
Note:
C1-- temperature condition is -45oC~+50oC; C2-- temperature condition is -60oC~+50oC |
