Your Location : Home / Product Center >> Food Grad White Rubber Belt >> Food Grade White Rubber Conveyor Belt

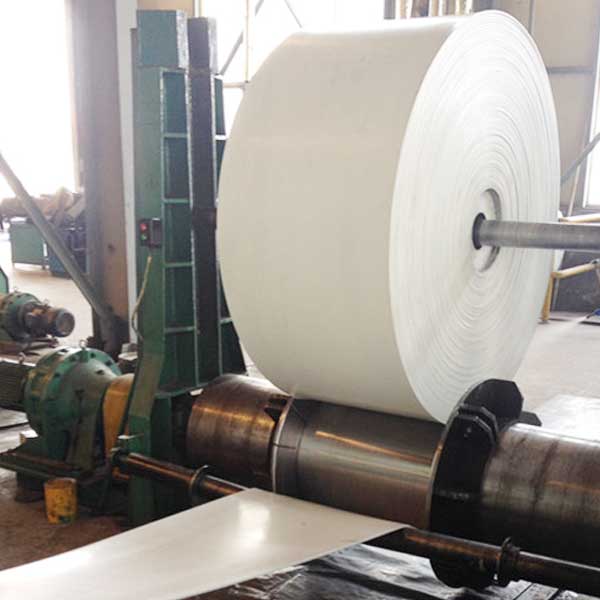

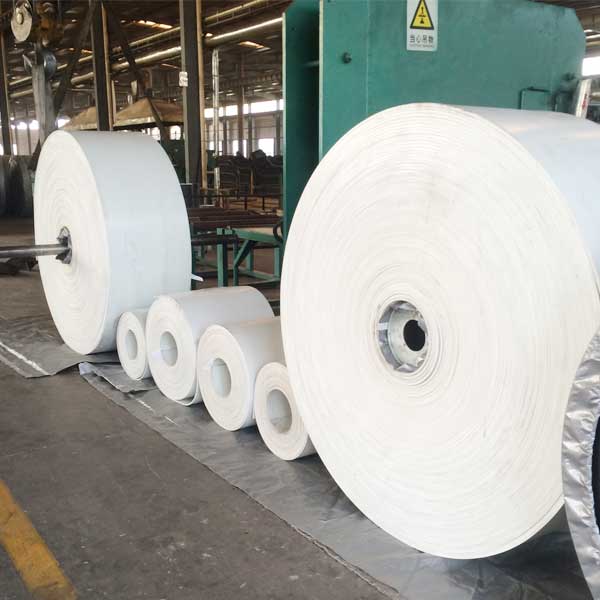

Name: | Food Grade White Rubber Conveyor Belt |
---|---|
Place of Origin: | Shandong ,China |
Brand Name: | Kaiyu Rubber |
Edge: | Mould / Cut |
Ply Number: | 1-20p |
Width: | 200-2400mm |
Mpa: | 8-25Mpa |
Abrasion: | 70-350mm3 |
Product Description
Food grade belts are suitable for handling food materials, These belts are made from natural rubber, special raw material,
Chemicals and without Carbon ,It do not transfer any odour or colour to the Conveying food products ,These belt are mostly
used in sugar industry, tea industry, tobacco, grain , pharmaceuticals, tea industries in Conveyor and Elevators.
Fabric type |
Fabric
structure |
Fabric type |
Fabric
thickness |
Cover rubber
thickness |
Width |
Length |
||
warp |
weft |
Upper |
Lower |
|||||
EP |
EP |
EP |
EP-100 |
0.75 |
1.5-8 |
0-4.5 |
400-2500 |
<=300/roll |
EP-150 |
0.8 |
|||||||
EP-200 |
0.90 |
500-2500 |
||||||
EP-250 |
1.15 |
|||||||
EP-300 |
1.25 |
|||||||
EP-400 |
1.45 |
800-2500 |
||||||
EP-500 |
1.55 |
Standards |
Cover Rubber |
Adhesion |
||||
Tensile
Strength |
Elongation at
break |
Abrasion |
Cover to Ply |
Cover to Ply |
Ply to Ply |
|
DIN 22102 |
Mpa |
% |
mm3 |
N/mm |
N/mm |
N/mm |
DIN 22102-Z |
15 |
350 |
250 |
3.5 |
4.5 |
5 |
DIN 22102-W |
18 |
400 |
90 |
3.5 |
4.5 |
5 |
DIN 22102-Y |
20 |
400 |
150 |
3.5 |
4.5 |
5 |
DIN 22102-X |
25 |
450 |
120 |
3.5 |
4.5 |
5 |
Standards |
Cover Rubber |
Adhesion |
||||
Tensile
StrengTD |
Elongation at
break |
Abrasion |
Cover to Ply |
Cover to Ply |
Ply to Ply |
|
AS 1332 |
Mpa |
% |
mm3 |
N/mm |
N/mm |
N/mm |
AS 1332-N17 |
17 |
400 |
200 |
4 |
4.8 |
6 |
AS 1332-M24 |
24 |
450 |
125 |
4 |
4.8 |
6 |
