Name:Pipe Rubber Conveyor Belt
Place of Origin:Shandong ,China
Brand Name:Kaiyu Rubber
Edge:Mould / Cut
Belt Strength:ST630-5000
Width:200-2400mm
Mpa:8-25Mpa
Abrasion:70-350mm3

Product Description

Usage

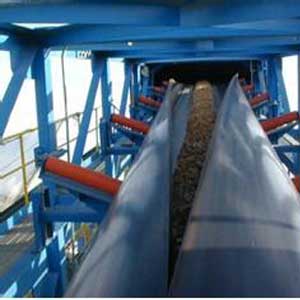

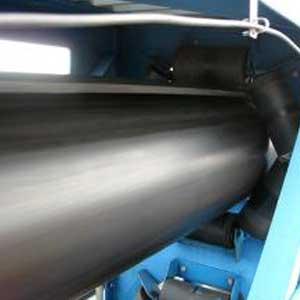

Steel cord pipe conveyor belt is a new type of conveying belt which uses steel cord as carcass, high elastic, high anti-abrasive and high strength rubber as
working surface. It’s mainly used in conveying materials which are easily polluted like power, granular materials, etc. when working, the rubber belt changes
its form from flat to U shape and finally to pipe, folding the materials and realizing the process of enclosed conveying.

Characteristics
Enclosed conveying of materials, protecting both the materials and the environment.

Steep angled conveying, the conveying angle can reach 30° usually.

Conveying line can be arranged according to the curve of space.

Belt strength
(st-No.)

Cord diam d
(mm)


Cord structure

Pitch P
(mm)

Standard working
tension(N/mm)

Standard rubber cover
thicknes t
1t2(mm)

Belt weight
(Kg/m2)

Min.Pulley
diam.(mm)

Cord strength
KN/piece

ST-630

3.0

6*7+1WS

10

90

5*5

20.0

800

6.93

ST-800

3.5

6*7+1WS

10

110

5*5

20.6

800

8.8

ST-1000

4.0

6*7+1WS

12

140

6*6

24.7

800

13.2

ST-1250

4.5

6*7+1WS

12

175

6*6

25.4

800

16.5

ST-1600

5.0

6*19+1WS

12

225

6*6

26.0

1000

21.12

ST-2000

6.0

6*19+1WS

12

285

8*6

30.0

1000

26.4

ST-2500

7.5

6*19W+1WS

15

355

8*6

32.2

1250

41.25

ST-3150

8.1

6*19W+1WS

15

450

8*8

35.7

1400

51.98

ST-4000

9.1

6*19W+1WS

17

570

8*8

37.8

1600

74.8

ST-4500

9.7

6*19W+1WS

16

645

8*8

38.7

1800

79.2

ST-5000

10.9

6*19W+1WS

17

715

8.5*8.5

41.9

1800

93.5

ST-5400

11.3

6*19W+1WS

17

760

9*9

43.9

2000

101

ST-6300

12.3

6*19W+1WS

18

900

10*10

48.3

2000

124.74
